[ultimate_heading main_heading=”CLEANING BOOTH Model: CB-1/CB-2″ spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”150″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading][bsf-info-box icon_type=”custom” img_width=”” pos=”left” el_class=”accent-icon-color accent-border-color” css_info_box=”.vc_custom_1569809126429{margin-bottom: 20px !important;}” title_font_size=”desktop:20px;” title_font_line_height=”desktop:30px;”]Application: part cleaning or wipe / air blow or dust off  before painting process[/bsf-info-box]

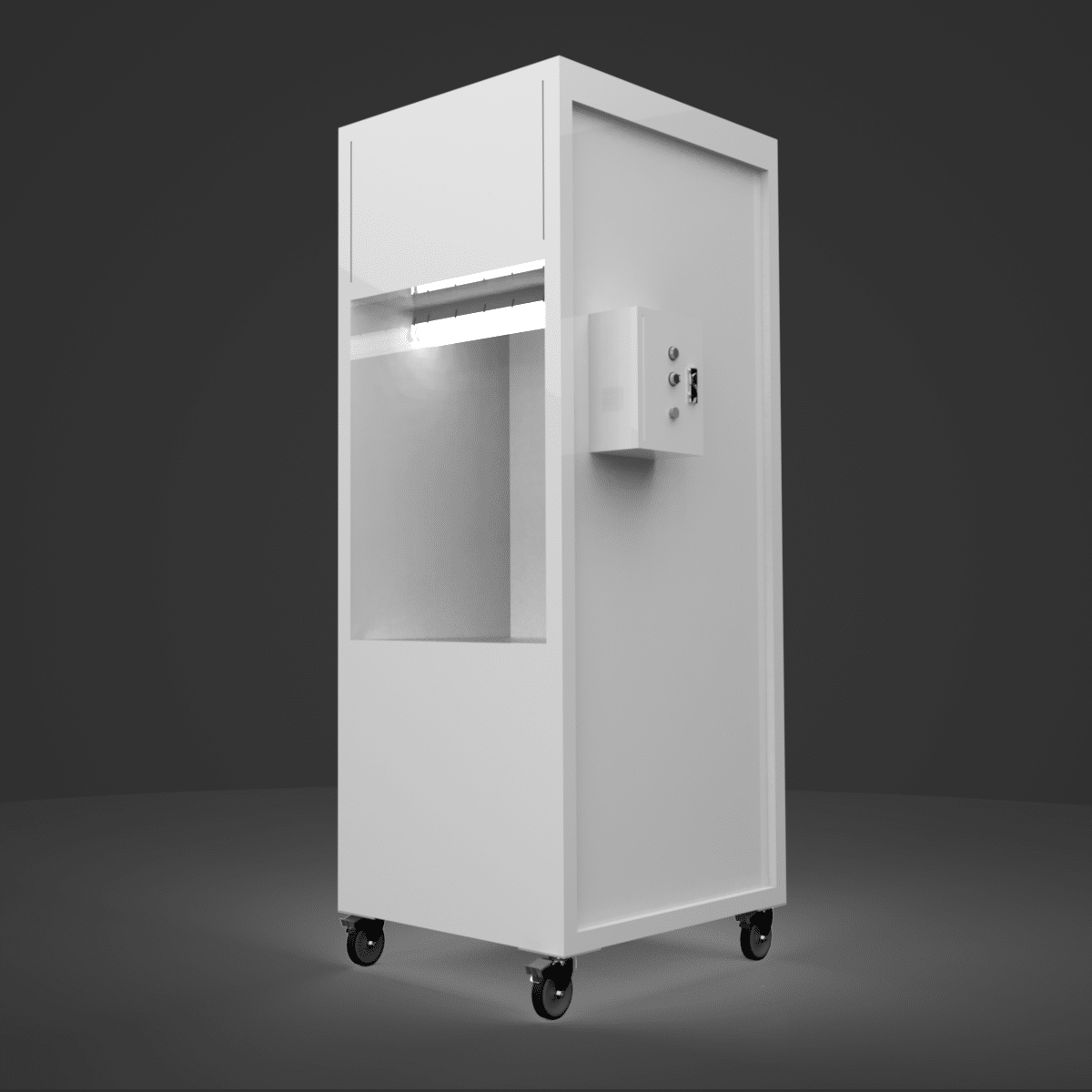

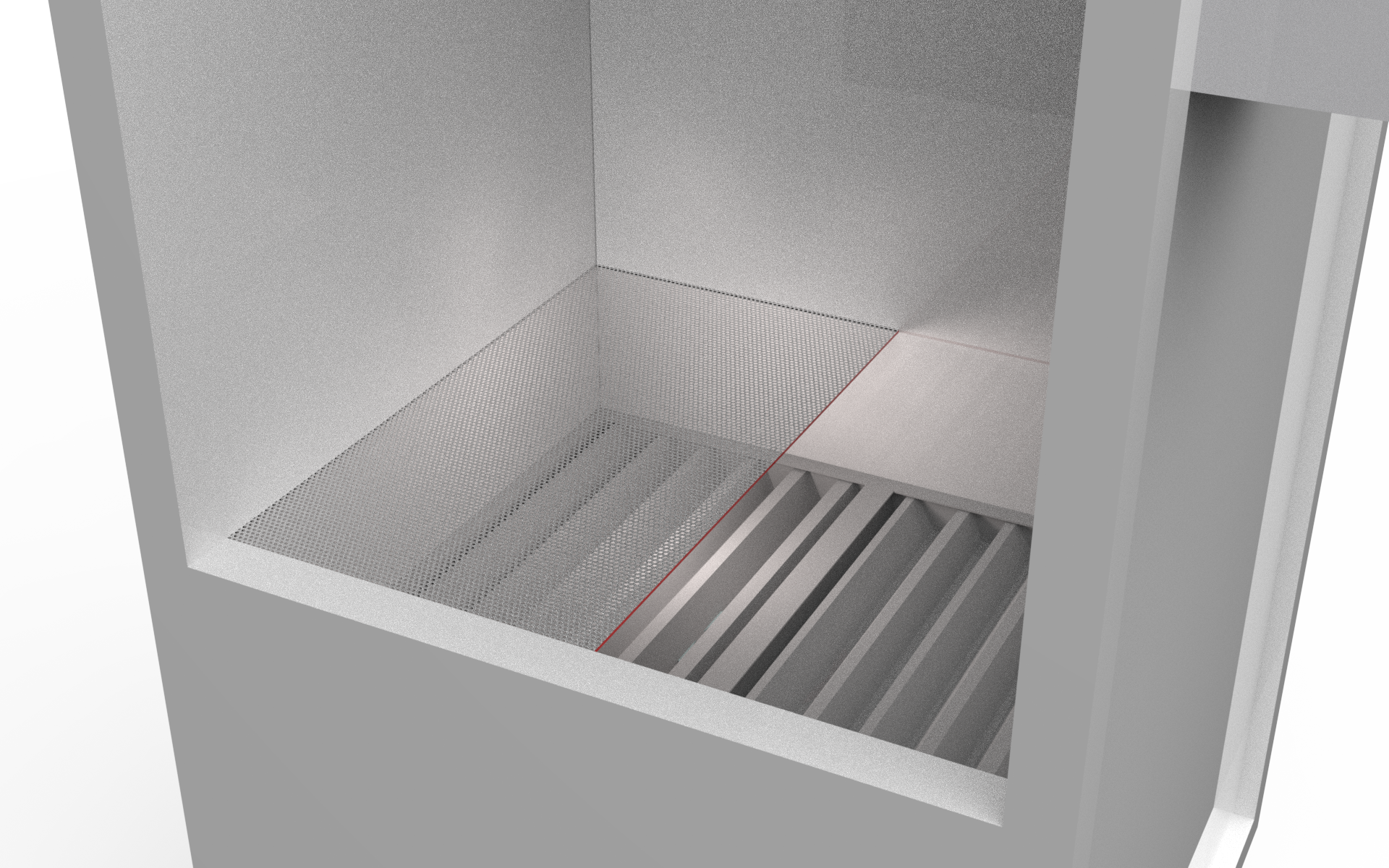

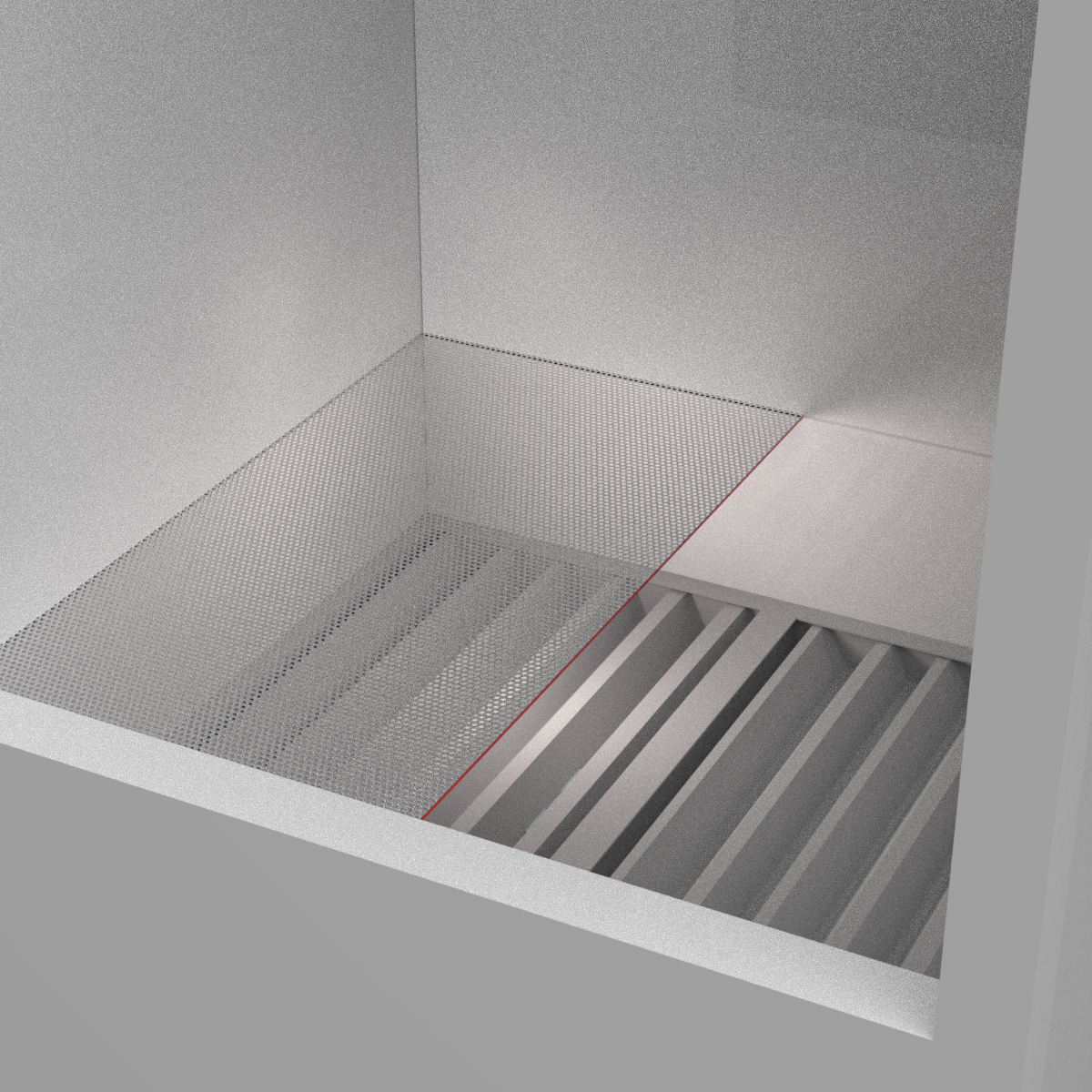

Cleaning Booth CB 1 002 1200x1200 n

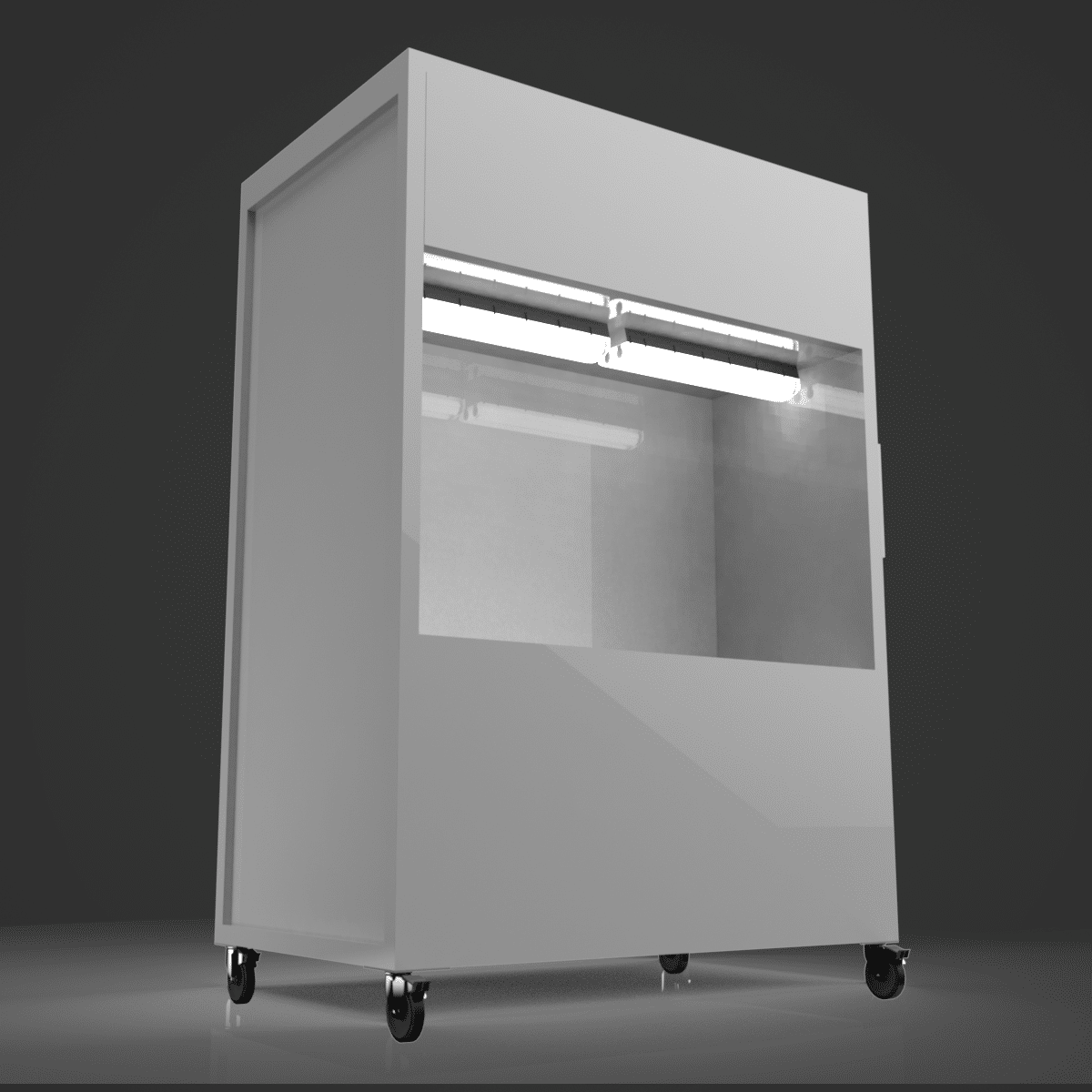

Cleaning Booth CB 2 001 1200x1200 n

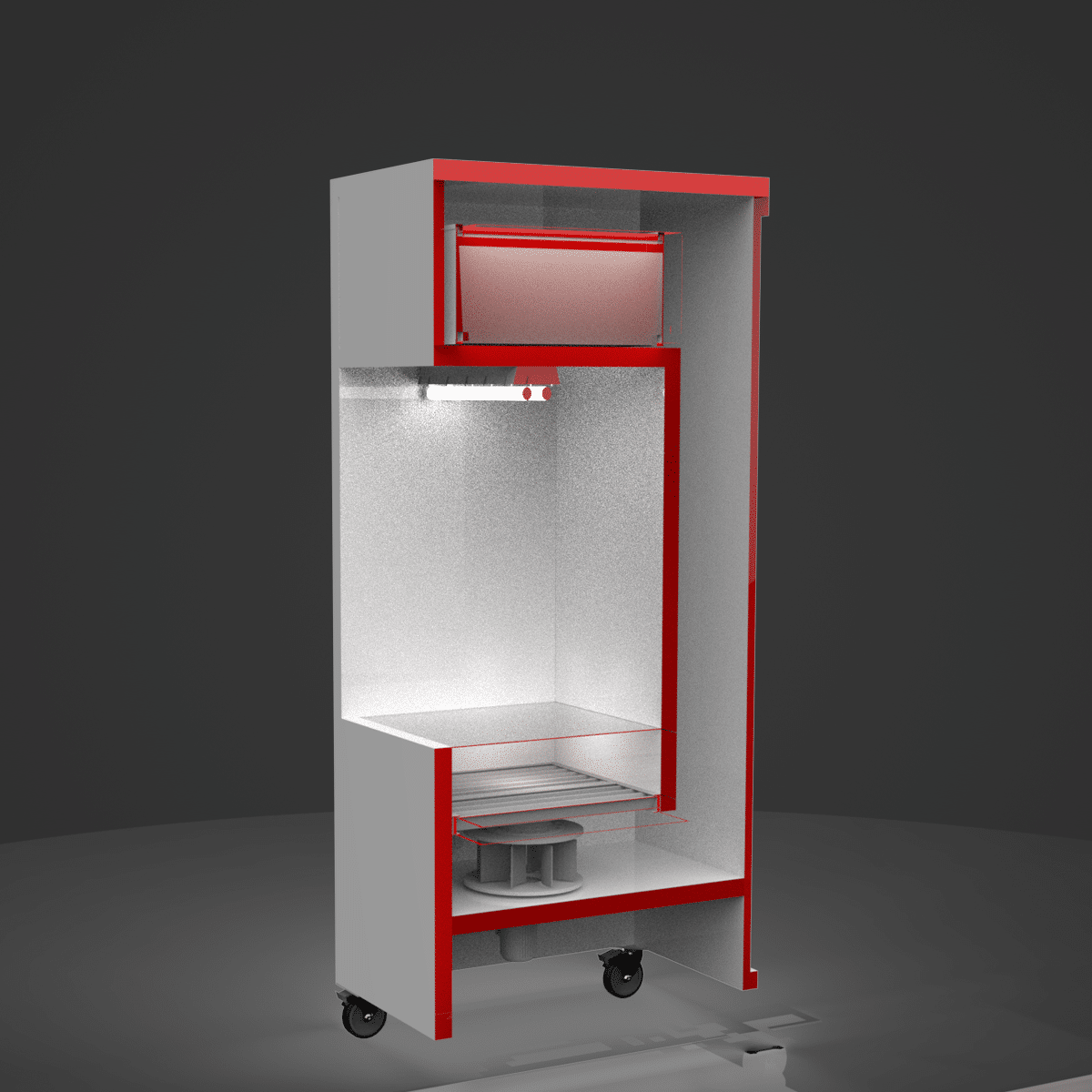

Cleaning Booth CB 003 1200x1200 n
Cleaning Booth
[ultimate_heading main_heading=”How CB-1 & CB-2 works” heading_tag=”h3″ spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”150″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading][ultimate_heading alignment=”left”]It is designed for cleaning a plastic parts especially before painting process for better quality and reduce NG parts.

Work of Cleaning booth

(No.3).The application is absorb an air blow from the fan througt the coarse filter
 EU-3 Filter (Aluminium extruded frame) Coarse Filter

(No.5) The fine filters is deeper sieve a dust from a fan to make a cleaner air
Medium Filter (Box type) Fine Filters[/ultimate_heading]

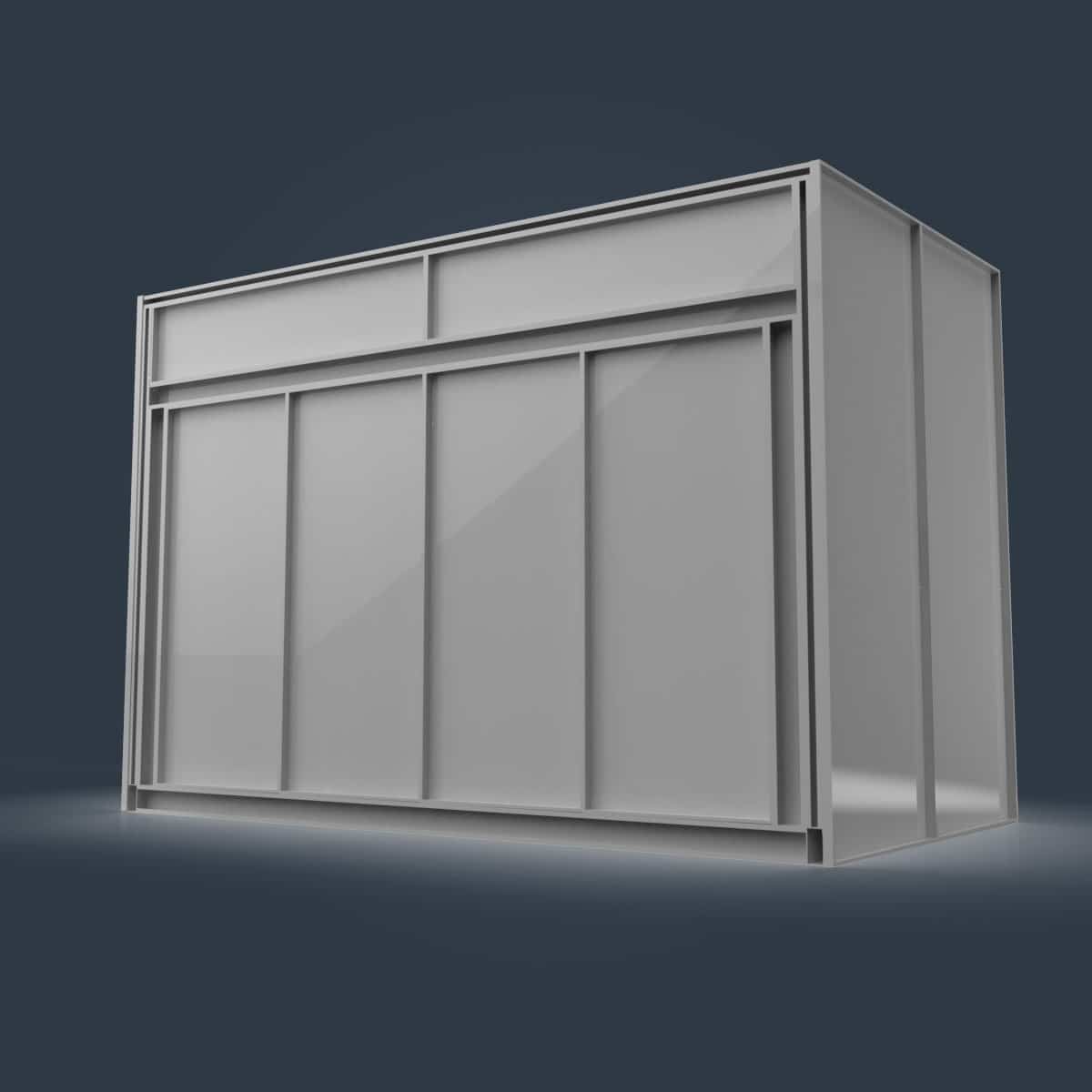

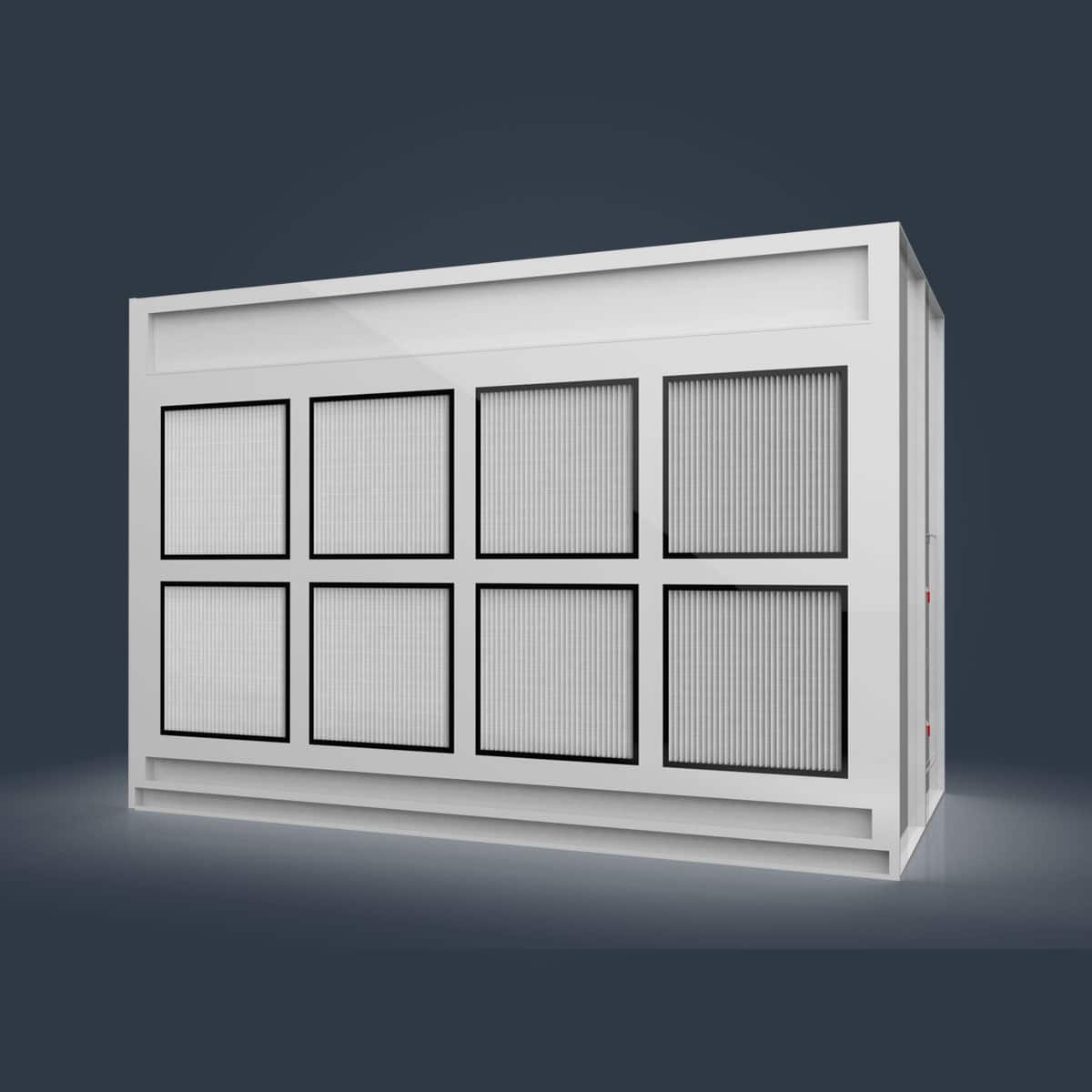

[ultimate_heading main_heading=”CLEANING BOOTH Model: CB-3″ spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”150″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading][bsf-info-box icon_type=”custom” img_width=”” pos=”left” el_class=”accent-icon-color accent-border-color” css_info_box=”.vc_custom_1612841767479{margin-bottom: 20px !important;}” title_font_size=”desktop:20px;” title_font_line_height=”desktop:30px;”]

Application: part cleaning or wipe / air blow or dust off  before painting process

[/bsf-info-box]

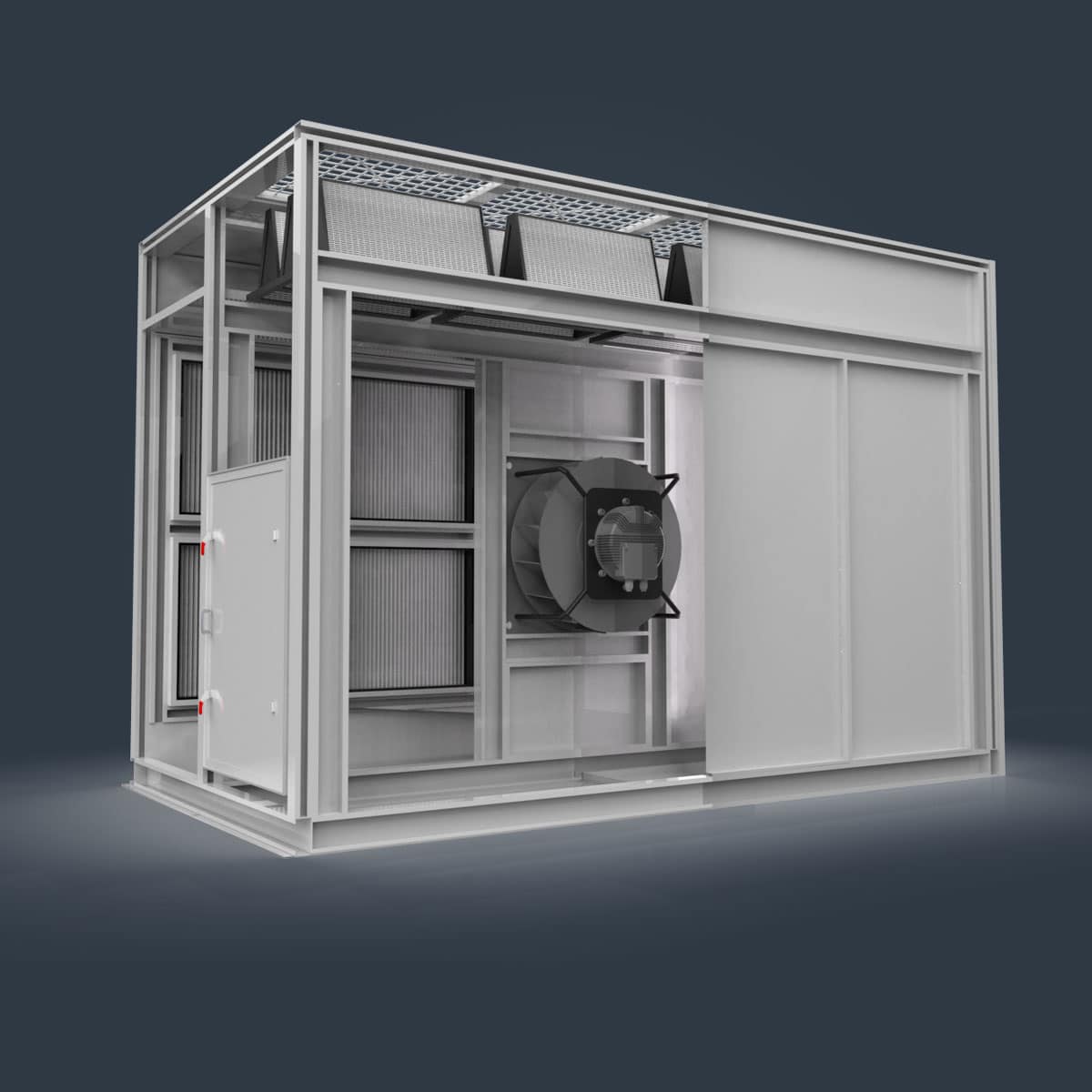

[ultimate_heading main_heading=”How CB3 works” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”150″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading][ultimate_heading alignment=”left”]Centrifugal module backward-curved, single-intake with support bracket
Size 450 mm. With motor 5.22 kW/1 set

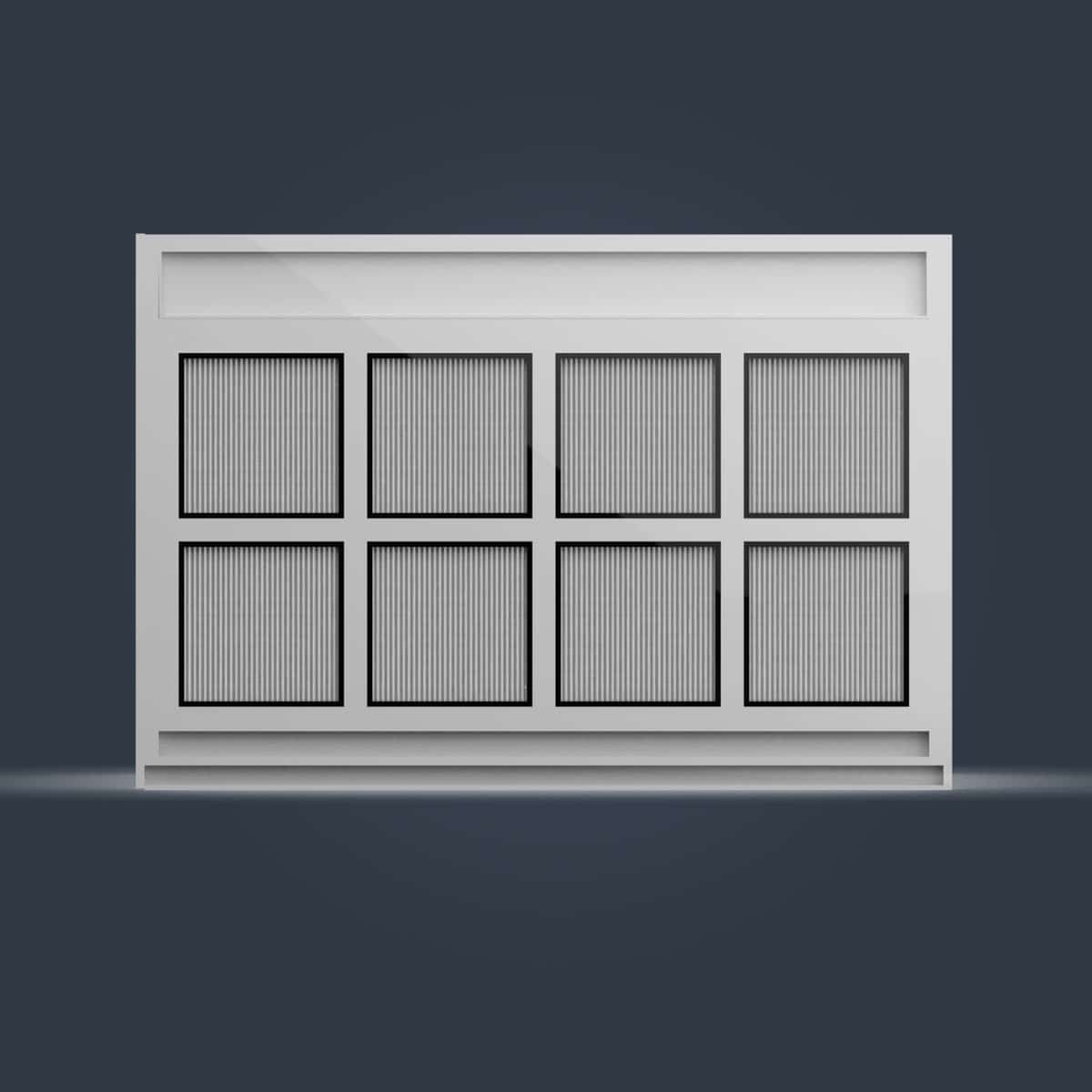

Medium Filter Size 592x592x96mm./8 set

V-Bank Filter Size 592x592x292mm./4 set[/ultimate_heading]

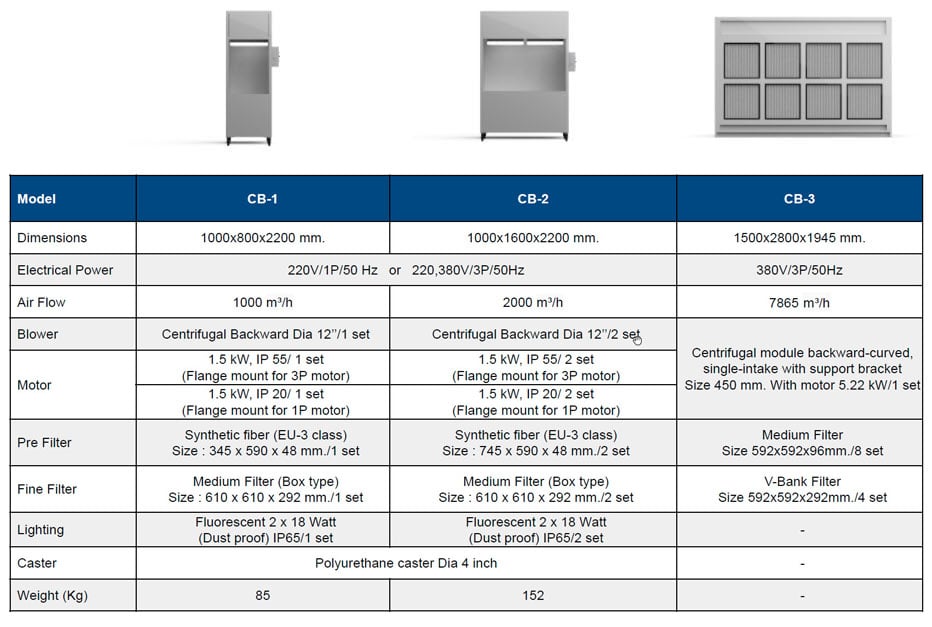

cb series datasheet
Download
