The change of water in the spray booths must be carried out only every 12 months maximum;
By extracting the mud continuously the booth water volume will be reduced up to 70% ;
The automatically extracted mud has got a very low volume, thanks to its easy dewatering;
The concentration of noxious substances in air emissions is considerably reduced;
Spray booths maintenance costs will be reduced up to 90%.
All the plants are completely automatic and easy to run.
[/bsf-info-box]

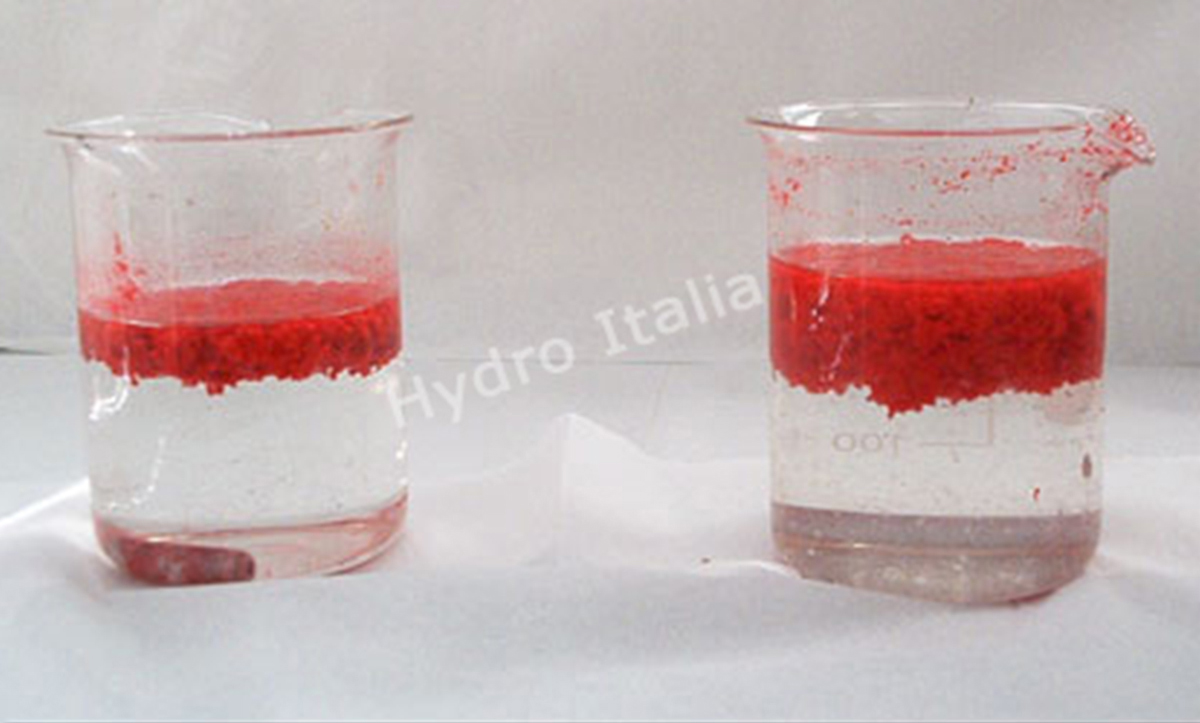

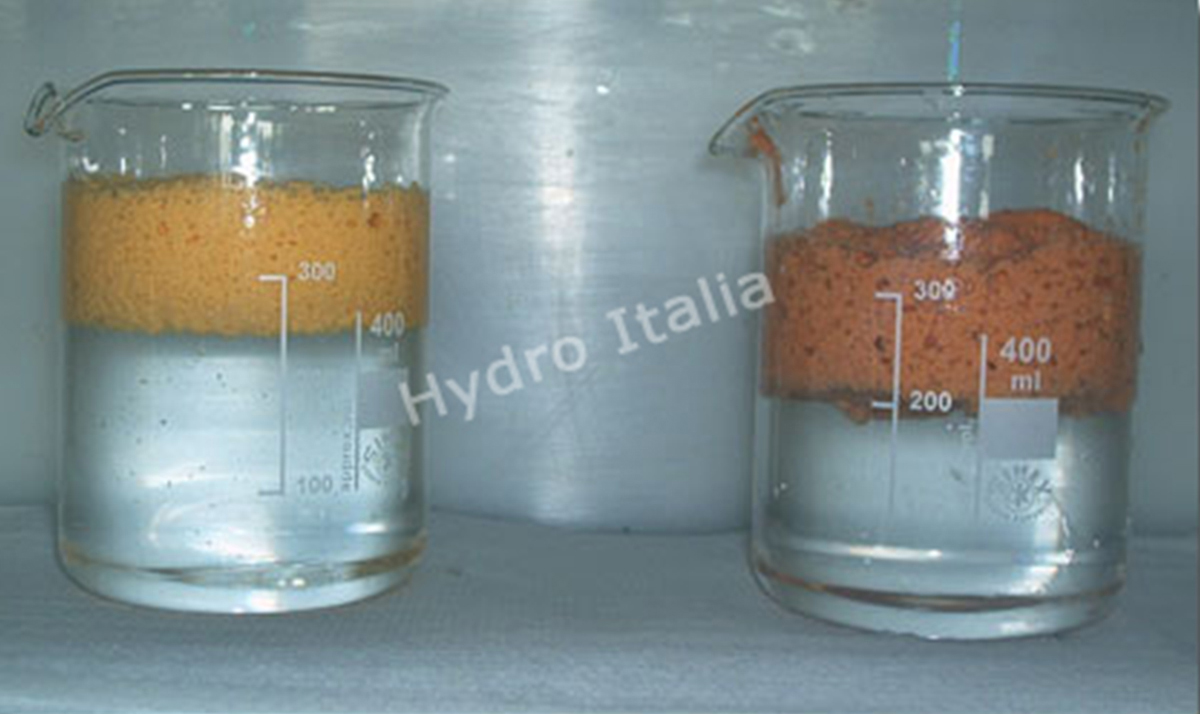

[ultimate_heading main_heading=”Sample paint sludge after dosing with chemical” heading_tag=”h3″ spacer=”line_only” spacer_position=”bottom” line_height=”1″ line_color=”#004185″ main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” main_heading_margin=”margin-top:50px;margin-bottom:50px;” sub_heading_margin=”margin-bottom:0px;” main_heading_font_family=”font_family:Kanit|font_call:Kanit”][/ultimate_heading]

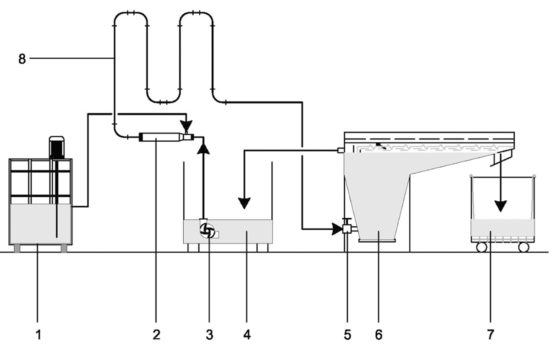

Paint Sludge Flotation Working Principle
1.Chemical Tank
2.Static Mixer
3.Pump with air suction for mixing
4.Spray booth tank
5.Inlet Valve
6.Flotation unit
7.Sludge Container
8.Water inlet piping
