[ultimate_heading main_heading=”How DF Series works” heading_tag=”h3″ spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”300″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading][bsf-info-box icon_type=”custom” img_width=”” title=”Spray Booth DF Series” pos=”left” el_class=”accent-icon-color accent-border-color” css_info_box=”.vc_custom_1606470793115{margin-bottom: 20px !important;}” title_font_size=”desktop:20px;” title_font_line_height=”desktop:30px;”]Summary of DF series Advantages

Economical and Cost Savings DF Series is an improved series from the DB Series. The series is ideally suited for high volume spray operations.

Completely knock-down structure More convenience to move and re-install. Almost every part of the booth is knock-down from the factory. The panel is pre-punched and ready to do final assembly at customer’s site. The booth is designed to easily disassembly whenever it’s needed.[/bsf-info-box]

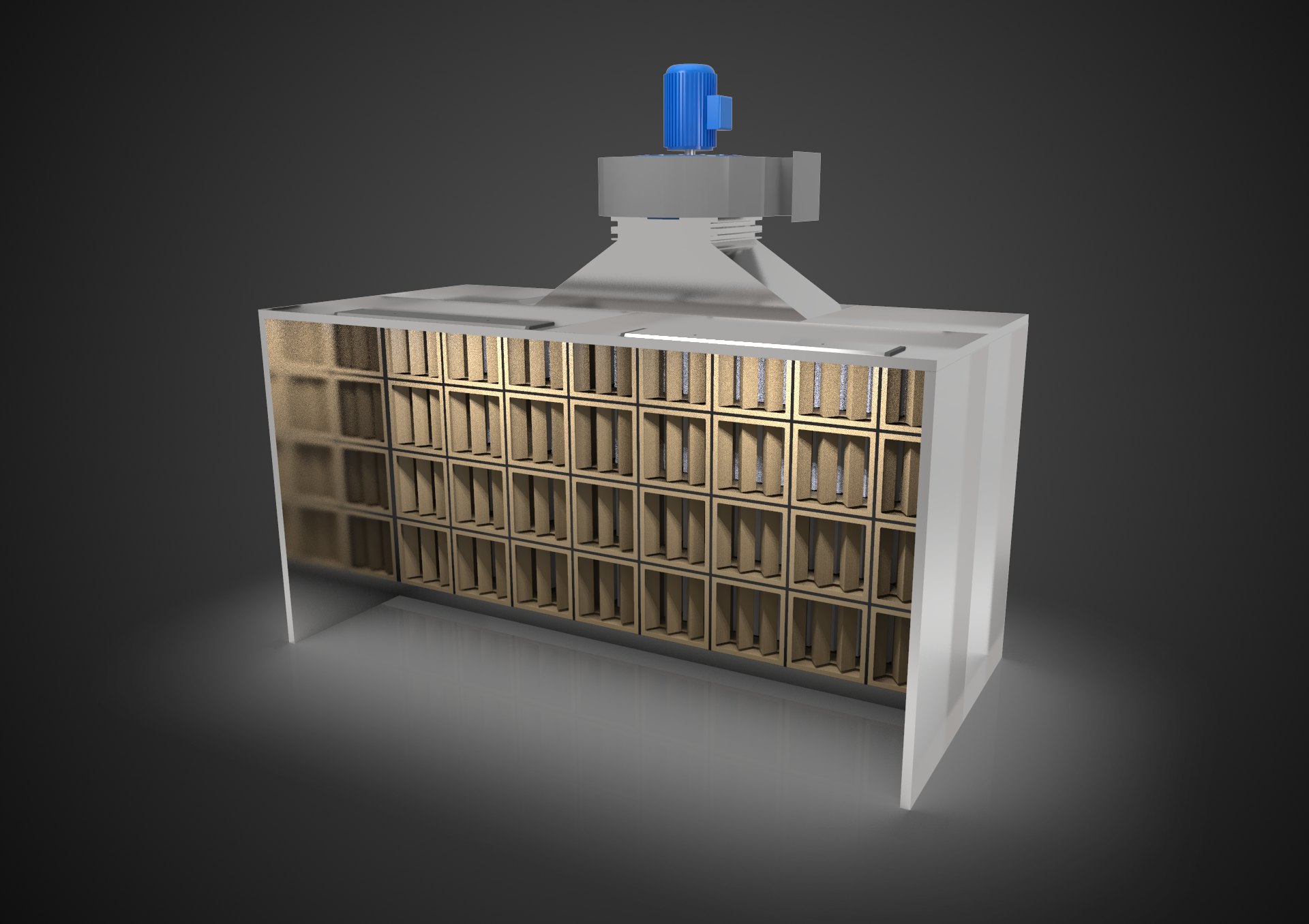

Spray Booth High Volume Dry Filter System

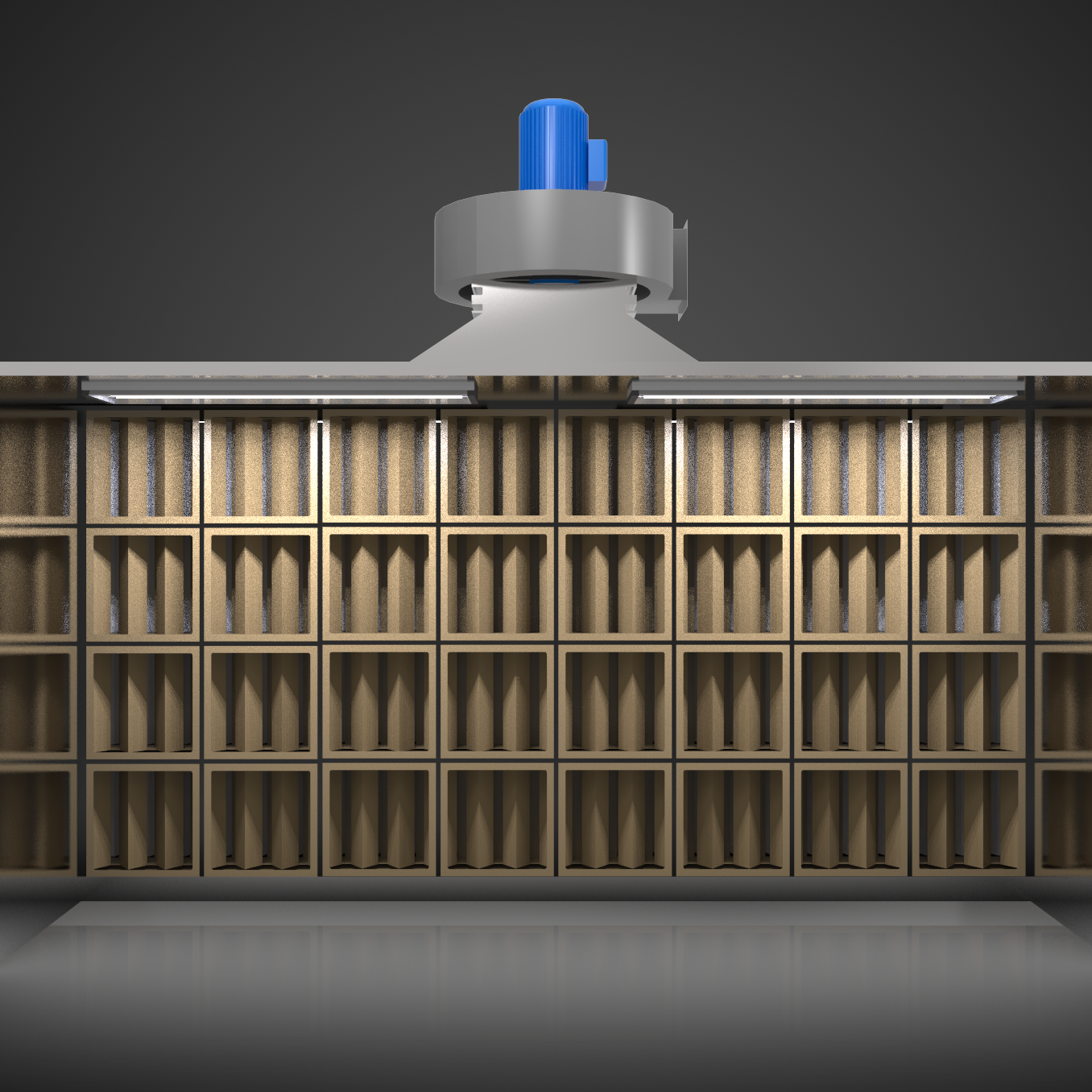

Spray Booth High Volume Dry Filter System f

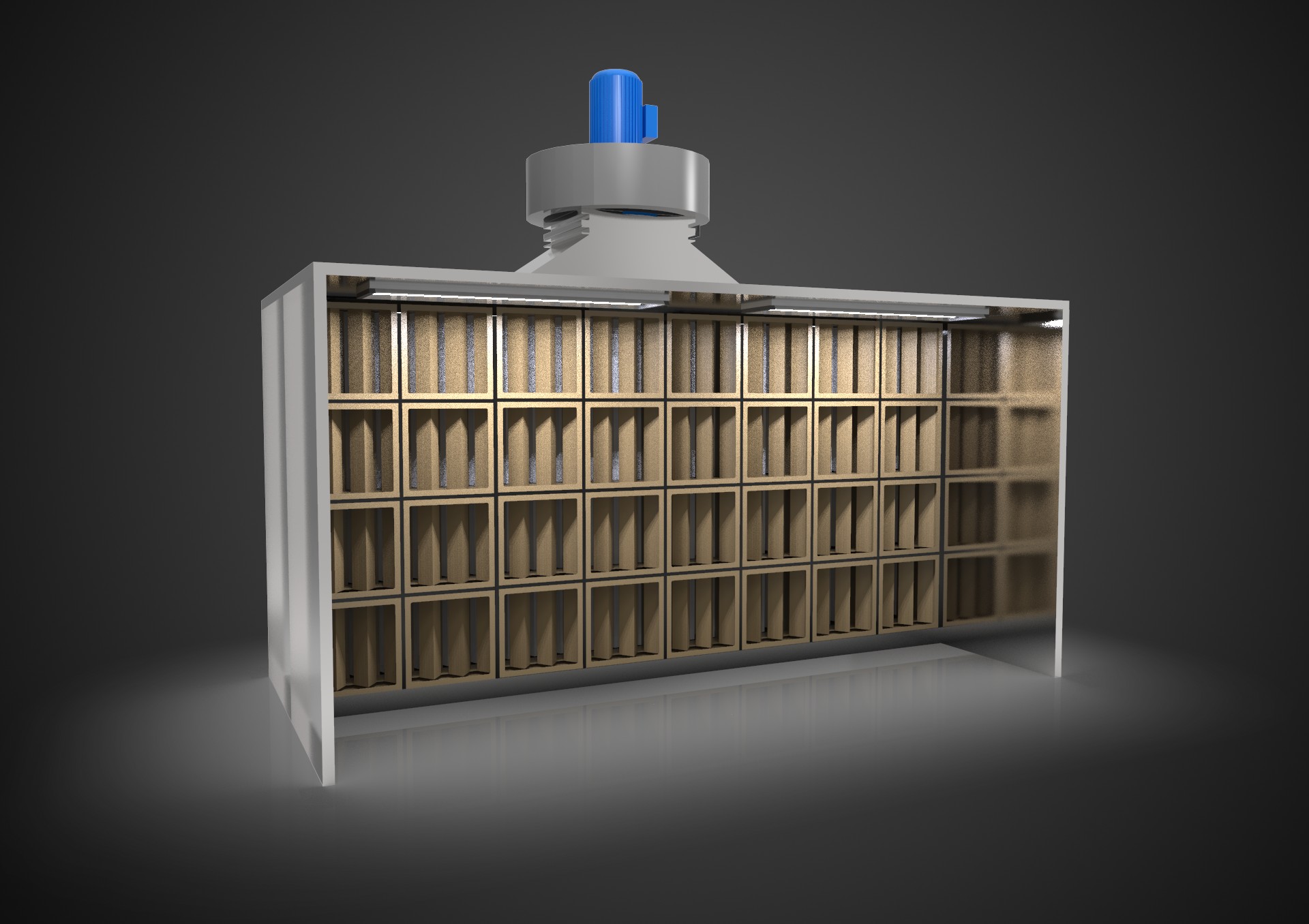

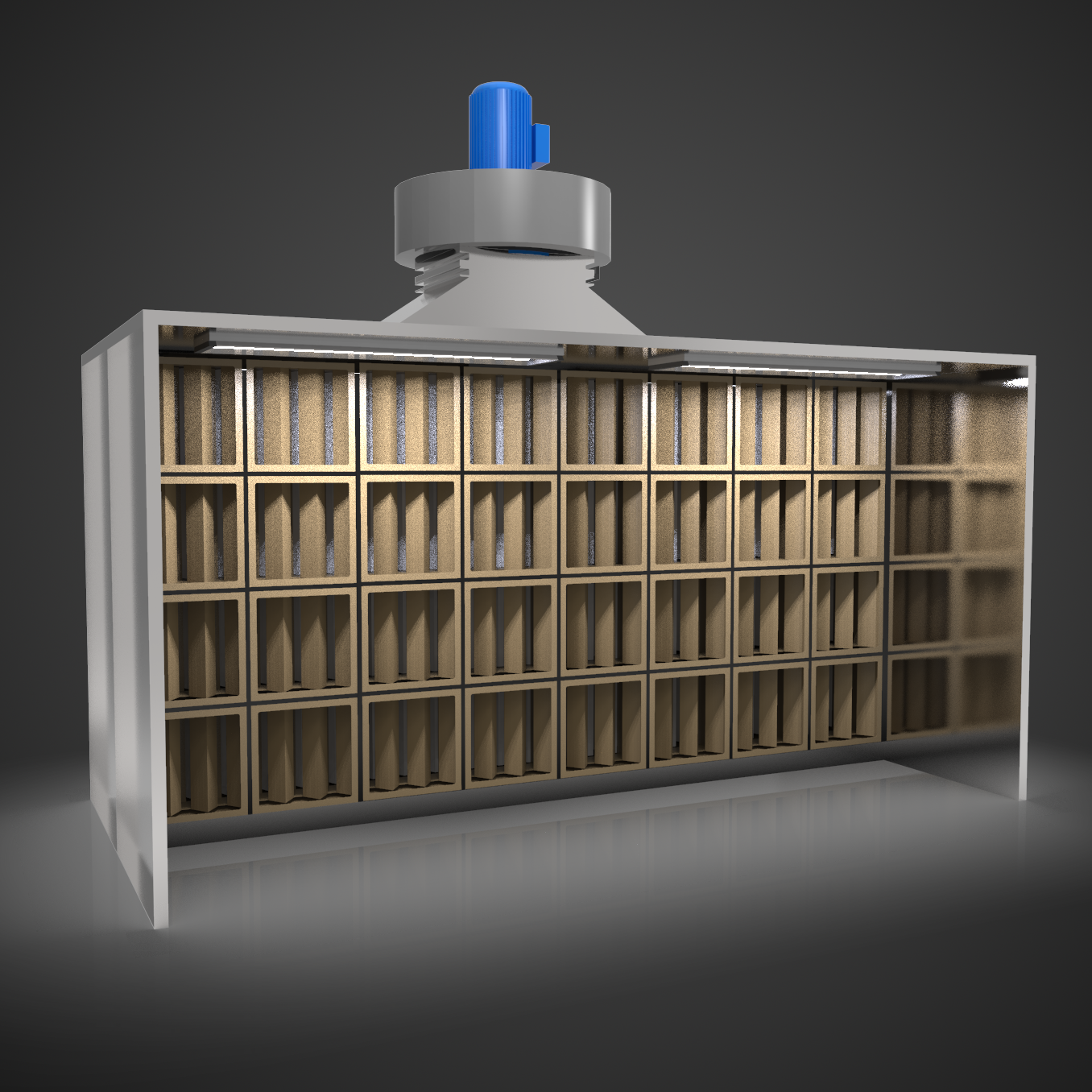

Dry BOOTH UBox Filter new.2

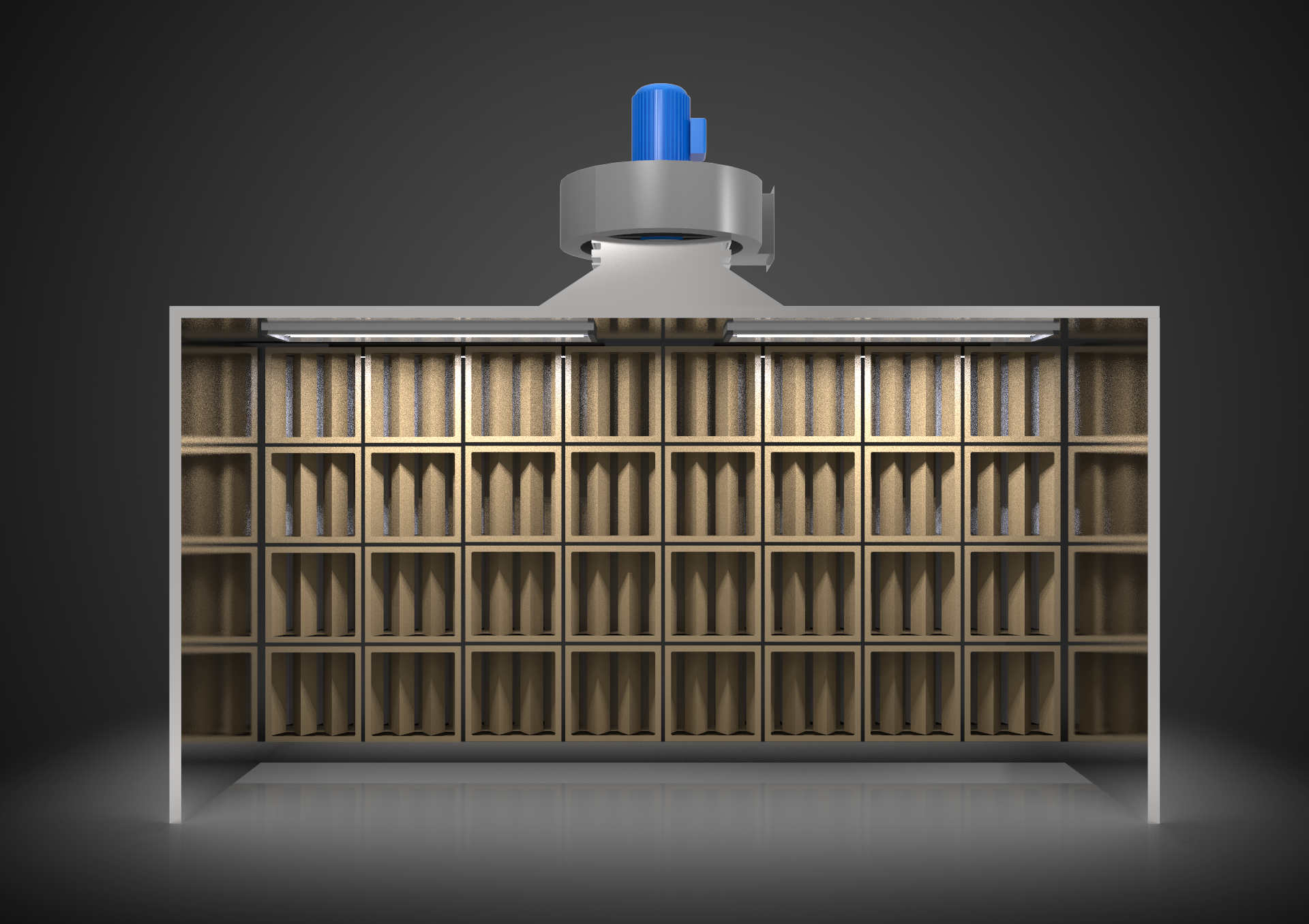

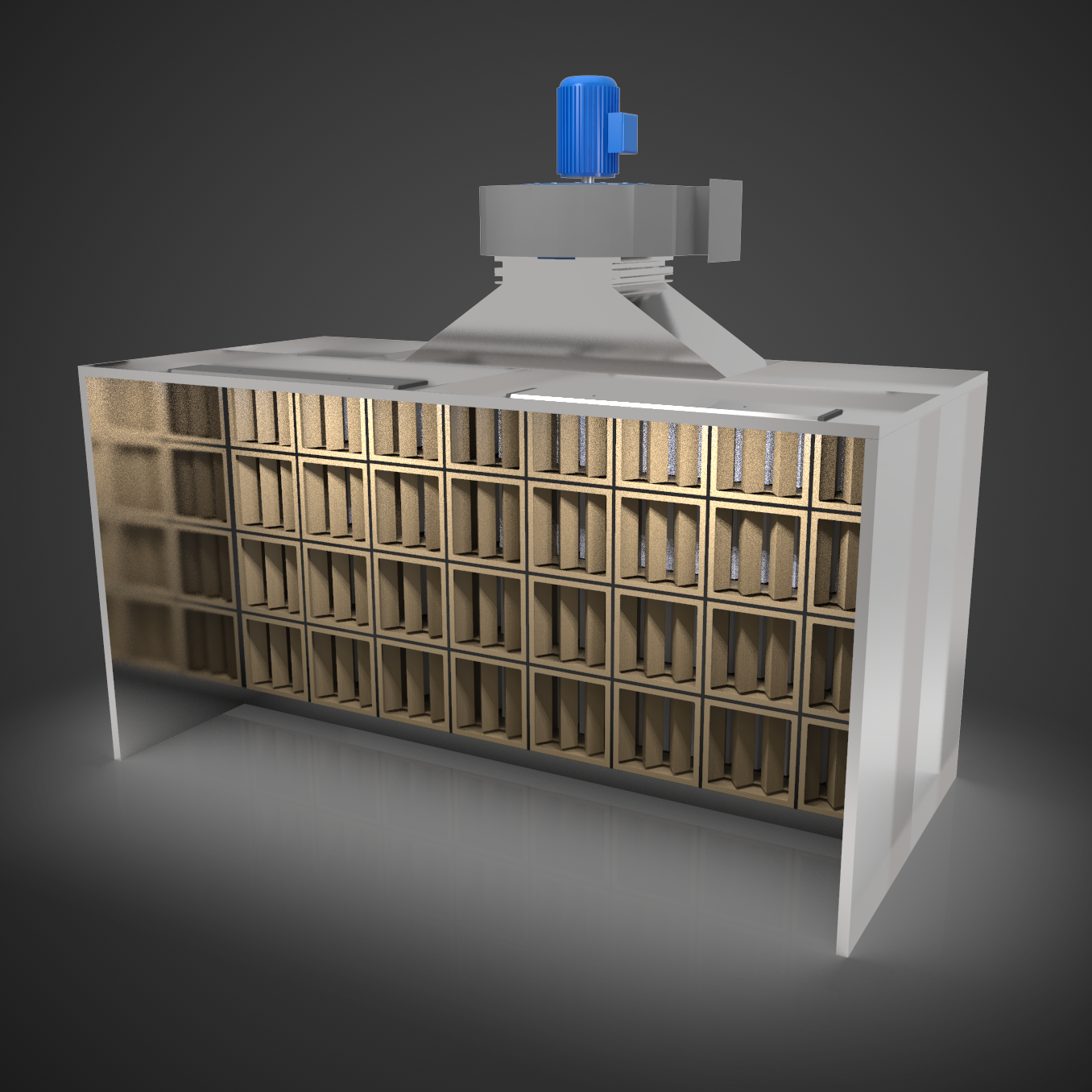

Spray Booth High Volume Dry Filter System

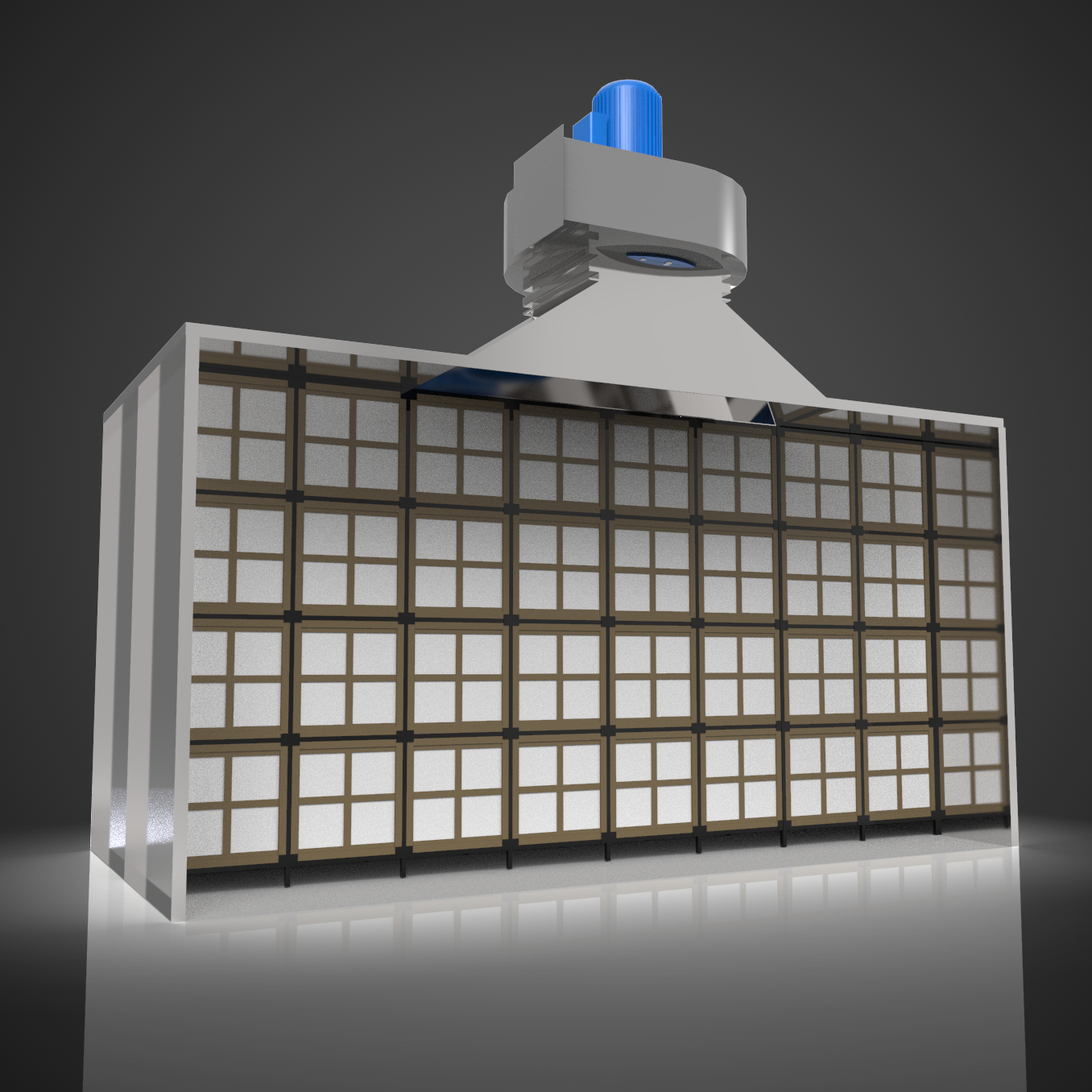

Dry BOOTH UBox Filter new.23
[ultimate_heading main_heading=”How DF Series works” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”150″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading]

A DF series spray booth has no washing chamber. Instead, the fan draws overspray into a filter box at the back of the booth. This traps the paint and allows clean air to be exhausted.

The disposable filter box use principle of inertia separation. The overspray suffers several radical changes in direction. The paint particles, heavier than air, are projected out of the air stream. A DF series spray booth has a holding capacity 6 times higher than a DB series spray booth

The filter box has a long life but when it is fully laden with paint. it can be individually replaced unit by unit

Spray Booth High Volume Dry Filter System DF Series 3

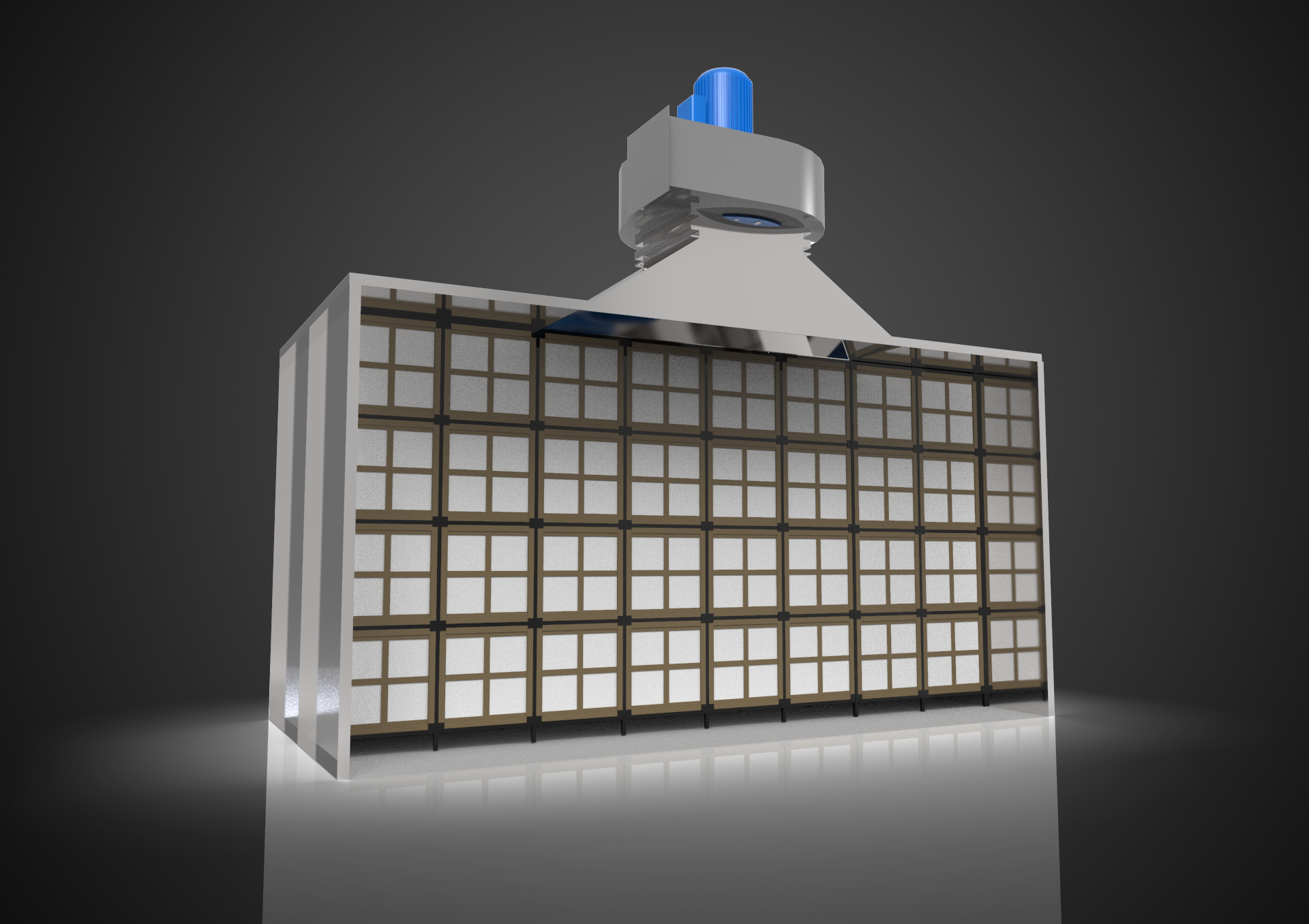

UBox Filter new 2.21
[ultimate_heading main_heading=”Collecting Efficiency” main_heading_color=”#004185″ sub_heading_color=”#898888″ spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#f3615a” line_width=”150″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:42px;mobile_landscape:34px;” main_heading_line_height=”desktop:52px;mobile_landscape:44px;” spacer_margin=”margin-bottom:40px;” main_heading_margin=”margin-bottom:0px;” sub_heading_margin=”margin-bottom:0px;”][/ultimate_heading]

Holding Capacity up to 120 kg / m2 **

Filtration Efficiency up to 99.45% **

Optimized using conditions:

Recommended air velocity :  0.5 – 2 m/s

Initial Pressure Drop :    20 – 130 Pa depend on the air velocity

Max. Pressure Drop :    800 Pa

UBox Filter

[ultimate_heading main_heading=”Specification Sheet”][/ultimate_heading]
Model SIZE (mm.) Exhaust Fan No. of Filter
Air Flow @ 0.6 m/sec Static Motor Q’ty Q’ty
W X D X H CMM (CFM) mm.Wq kW (HP) (Set) (Set)
DF – 15 1,500 X 2,000 x 2,100 108 ( 3,900 ) 100 5.5 ( 7.5 ) 1 12
DF – 20 2,000 X 2,000 x 2,010 144 ( 5,100 ) 100 7.5 ( 10 ) 1 16
DF – 30 3,000 X 2,000 x 2,100 216 ( 7,700 ) 100 15 ( 20 ) 1 24
DF – 40 4,000 X 2,000 x 2,100 288 ( 10,200 ) 100 7.5 ( 10 ) 2 32
DF – 50 5,000 X 2,000 x 2,100 360 ( 12,800 ) 100 7.5 ( 10 ) 2 40
DF – 60 6,000 X 2,000 x 2,100 432 ( 15,300 ) 100 15 ( 20 ) 2 48
DF – 70 7,000 X 2,000 x 2,000 504 ( 17,800 ) 100 15 ( 20 )  2  56
DF – 80 8,000 X 2,000 x 2,100 576 ( 20,500 )  100 15 ( 20 )  3  64
Download Catalogue
